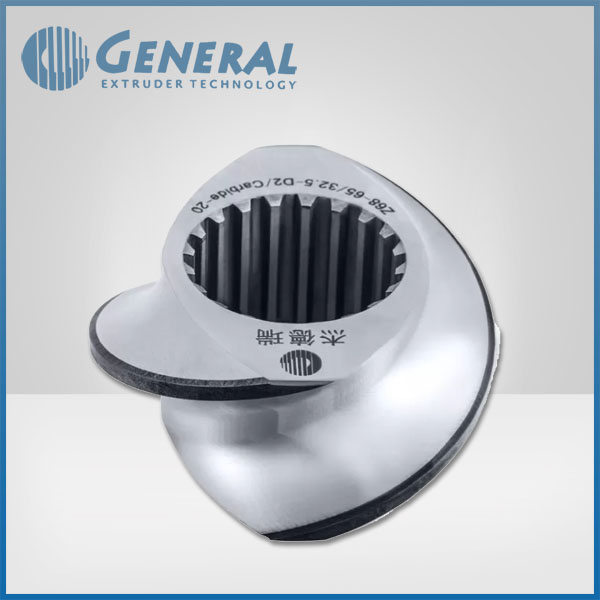

Multi Functional Plastic Extrusion Parts / Customized Extruder Spare Parts
| Product Name: | Plastic Extrusion Parts | Advantage: | Multi Functional |
|---|---|---|---|
| Out Diameter: | 46 Mm | Material: | High Speed Steel |
| HRC: | 58-62 | Feature: | High Anti-wear |
| Standard: | Match Original Design | Type: | Type |
| High Light: |
twin screw kneader, plastic extrusion screw |
||
Multi Functional Plastic Extrusion Parts / Customized Extruder Spare Parts
Plastic Extrusion Parts Specifications:
| For Wear Application:
Tool Steel:W6Mo5Cr4V2
PM-HIP Material:X245 SAM10 |
| For Corrision Application:
Nitrided Steel:38CrMoAlA
PM-HIP Material:WR5 X235 SAM39
|
|
For Wear and Corrision Application:
PM-HIP Material: X235 SAM39
|
| Other Materials: Stainless Steel:316L,C276 etc.
|
We are specialized in manufacturing screw elements, barrels and core shaft with CNC vertical machining center, CNC horizontal thread grinding machine and CNC spline milling machine what can monitor by coordinate measuring instrument. We have the most advanced heat treatment to ensure the quality reaches international advanced level. Many kinds of parts of twin-screw extruders are available with competitive price and shorter delivery time.We can supply Kobe steel KTX46 screw element.
Plastic Extrusion Parts Description:
We are the first screw element manufacturer in China, with more than 20 years’ manufacturing history, our screw element, Kneading block,barrel, shaft are produced by HIP material import from Germany to be same anti-wear& anti-corrosion , our customer including Europe extruder manufacturers, and world’s leading polymer compounders like Aschulman,Polyone,Covestro,DSM enginering plastic ,Lanxess.
Plastic Extrusion Parts Applications:
| Code no | Remarks | Hardness | Wear | Corrosive | Application |
| Gen-00 | Nitride steel | HV-950-1100 | 3 | 2 | General Plastics |
| Gen-06 | Ingot high speed steel | HRC-59-62 | 5 | 2 | Engineering Plastics, Wear Resistance |
| Gen-11 | Ingot Die Steel, SKD11 / D2/1.2379 | HRC-58-63 | 4 | 2 | General Plastics |
| Gen-44 | Stainless steel SUS440 | 3 | 6 | Engineering Plastics, Corrosive Resistance for Filler, FG Filler | |
| Gen-09 | CPM9V | 6 | 6 | Engineering Plastics,High Wear Resistance | |
| Gen-10 | Powder high spped steel X245/SAM10 | HRc 61 ～ 65 | 8 | 3 | Super Engineering Plastics, Wear Resistance for Filler, FG Filler |
| Gen-39 | X235/SAM39 | 6 | 8 | Super Engineering Plastics, Corrosive Resistance for Filler, FG Filler | |
| Gen-60 | ASP60/MM60 | 9 | 9 | Super Engineering Plastics, Wear Resistance for Filler, FG Filler |
Competitive Advantage:
All dimensions including out diameter, Hole size tolerance, Root diameter,Parallelism of end surface,Verticality are in accordance with technical data.
