High Performance Extruder Screw Elements For Modified Engineering Plastics
| Product Name: | Extruder Screw Elements | Application: | Polymer Compouding |
|---|---|---|---|
| Out Diameter: | More Than 40 Mm | Material: | SUS630 |
| HRC: | 58-62 | Feature: | High Performance |
| Standard: | Match Original Design | ||
| High Light: |
precision machined parts, extruder spare parts |
||

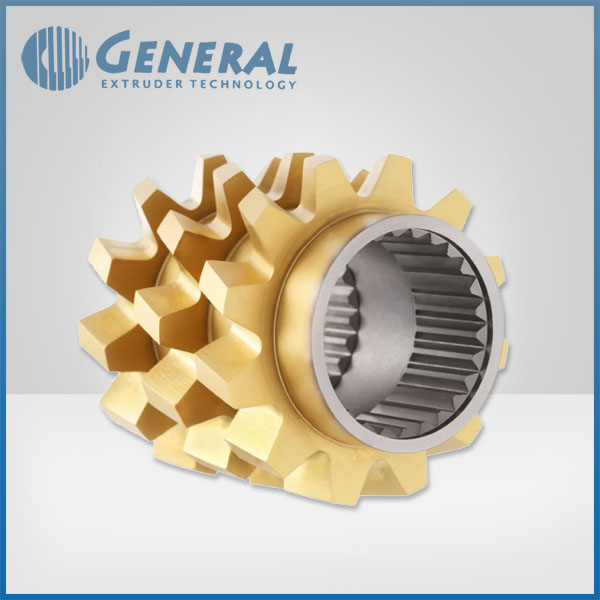

High Performance Extruder Screw Elements For Modified Engineering Plastics
Extruder Screw Elements Introduction
General source metallurgy worldwide,from high speed steel to cold work steel, to HIP Powder metal.we have more than 7 years’ HIP soft core material manufacturing experience,it’s used to protect the shaft and element spline,and provide maximum torque transfer.
We supply screw element for Germany brand Leistritz ZSE series
Our Advantages:
a. Cost advantage: mature scientific processing technology and heat treatment process to produce high-quality thread components, barrels, to replace imported products, to reduce costs for customers.
b. Advantages of foreign trade: Many well-known enterprises at home and abroad extruder screws are manufactured by customers and serve for many years. SABIC, LG Chem, Guangdong Hyundai, Tianjin Samsung, Formosa Plastics, DuPont, and Shanghai Toyoink are all cooperative customers. Can make a presentation, such as the company’s gift, reflected in About US.
c. Manufacturing advantages: at the top of domestic production level, to meet the production standards of Japan and Germany. Strict product quality inspection procedures
d. Time cost advantage: the product itself can be customized according to customer needs, and the delivery time is short, the cycle is flexible and efficient.
About US
We are the first screw element manufacturer in China, with more than 20 years’ manufacturing history, our screw element, Kneading block,barrel, shaft are produced by HIP material import from Germany to be same anti-wear& anti-corrosion , our customer including Europe extruder manufacturers, and world’s leading polymer compounders like Aschulman,Polyone,Covestro,DSM enginering plastic ,Lanxess.
Extruder Screw Elements Applications:
| Code no | Remarks | Hardness | Wear | Corrosive | Application |
| Gen-00 | Nitride steel | HV-950-1100 | 3 | 2 | General Plastics |
| Gen-06 | Ingot high speed steel | HRC-59-62 | 5 | 2 | Engineering Plastics, Wear Resistance |
| Gen-11 | Ingot Die Steel, SKD11 / D2/1.2379 | HRC-58-63 | 4 | 2 | General Plastics |
| Gen-44 | Stainless steel SUS440 | 3 | 6 | Engineering Plastics, Corrosive Resistance for Filler, FG Filler | |
| Gen-09 | CPM9V | 6 | 6 | Engineering Plastics,High Wear Resistance | |
| Gen-10 | Powder high spped steel X245/SAM10 | HRc 61 ～ 65 | 8 | 3 | Super Engineering Plastics, Wear Resistance for Filler, FG Filler |
| Gen-39 | X235/SAM39 | 6 | 8 | Super Engineering Plastics, Corrosive Resistance for Filler, FG Filler | |
| Gen-60 | ASP60/MM60 | 9 | 9 | Super Engineering Plastics, Wear Resistance for Filler, FG Filler |
After-sales service:
- Providing on-the-spot technical assistance in installation, commission and training
- Filling in detail customer’s information
- Providing long-term maintenance service and spare parts
- Giving technical support to customer for developing new product
- Providing free maintenance for a year
