Detailed Product Description
Product Name: Screw Element For W&PCoperion ZSK50 Application: Polymer Compouding
Out Diameter: 50mm Material: High Speed Steel
HRC: 58-62 Feature: High Anti-wear
Standard: Match Original Design Type: High Speed Steel
High Light: precision machined parts, extruder elements
Customized Size Extruder Screw Elements For General Plastics HV-950-1100

Extruder Screw Elements Applications:

Types of the Extruder Screw Elements

* Convey Screw Segment
* Mixing Screw Segment
* Kneading Block & Disk
* Transition Screw Element
* Deep groove transfer element
* Screw element for side feeder
* 1-flighted,2-flighted,3-flighted screw elements

Code no Remarks Hardness Wear Corrosive Application
Gen-00 Nitride steel HV-950-1100 3 2 General Plastics
Gen-06 Ingot high speed steel HRC-59-62 5 2 Engineering Plastics, Wear Resistance
Gen-11 Ingot Die Steel, SKD11 / D2/1.2379 HRC-58-63 4 2 General Plastics
Gen-44 Stainless steel SUS440 3 6 Engineering Plastics, Corrosive Resistance for Filler, FG Filler
Gen-09 CPM9V 6 6 Engineering Plastics,High Wear Resistance
Gen-10 Powder high spped steel X245/SAM10 HRc 61 ～ 65 8 3 Super Engineering Plastics, Wear Resistance for Filler, FG Filler
Gen-39 X235/SAM39 6 8 Super Engineering Plastics, Corrosive Resistance for Filler, FG Filler
Gen-60 ASP60/MM60 9 9 Super Engineering Plastics, Wear Resistance for Filler, FG Filler

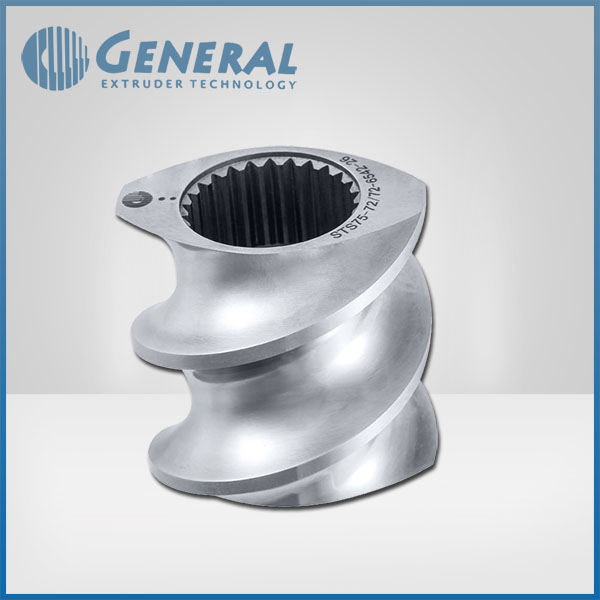

General’s Elements manufactured for more than 30 brands of twin screw extruders including: Coperion,Berstorff,JSW,Toshiba,etc.Attached is W&P Coperion ZSK50 screw element. Besides HIP Powder metal General develop materials like SUS440C,SKD11,within many years’ HIP soft core material manufacturing experience,we are able to supply same anti-wear& anti-corrosion quality as original W&P Coperion ZSK50 screw element.

Our Advantages:
a. Cost advantage: mature scientific processing technology and heat treatment process to produce high-quality thread components, barrels, to replace imported products, to reduce costs for customers.
b. Advantages of foreign trade: Many well-known enterprises at home and abroad extruder screws are manufactured by customers and serve for many years. SABIC, LG Chem, Guangdong Hyundai, Tianjin Samsung, Formosa Plastics, DuPont, and Shanghai Toyoink are all cooperative customers. Can make a presentation, such as the company’s gift, reflected in About US.
c. Manufacturing advantages: at the top of domestic production level, to meet the production standards of Japan and Germany. Strict product quality inspection procedures
d. Time cost advantage: the product itself can be customized according to customer needs, and the delivery time is short, the cycle is flexible and efficient.

Description:

We are the first screw element manufacturer in China, with more than 20 years’ manufacturing history, our screw element, Kneading block,barrel, shaft are produced by HIP material import from Germany to be same anti-wear& anti-corrosion , our customer including Europe extruder manufacturers, and world’s leading polymer compounders like Aschulman,Polyone,Covestro,DSM enginering plastic ,Lanxess.

Competitive Advantage:
All dimensions including out diameter, Hole size tolerance, Root diameter,Parallelism of end surface,Verticality are in accordance with technical data.

Tag: extruder spare parts, extruder elements, precision machined parts
